Card UI

2D and 3D card flip/stack animations for content presentation.

Layout layout card flip 3d animation

Card UI

A range of controls to provide a Card based interface, this includes several capabilities and features to manipulate the cards based on requirements, including:

  • 2D Expanding cards
  • 2D Popup, including falling cards
  • 2D card stacks
  • 3D Expanding cards and Superelipses

Contents

1 Overview

2 Properties

3 Methods

4 Usage

5 Video Demo

6 See also

7 Credits and Donation

8 External links

Overview

The range of Card UI controls give you several options for creating card like UI elements for your project.

  • 2D Expanding Card - A clickable/expandable card layout.
  • 2D Popup - Physics enabled falling cards.
  • 2D Stacked cards - A depth orientated controller for displaying cards stacked on top of each other.
  • 3D Cards - Custom panel meshes with rounded corners for advanced effect.
2D Card Expanding 2D Popup Cards

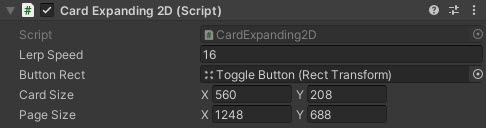

2D Card Expanding Inspector 2D Popup Cards Inspector
2D Stacked Cards 3D Expanding Cards

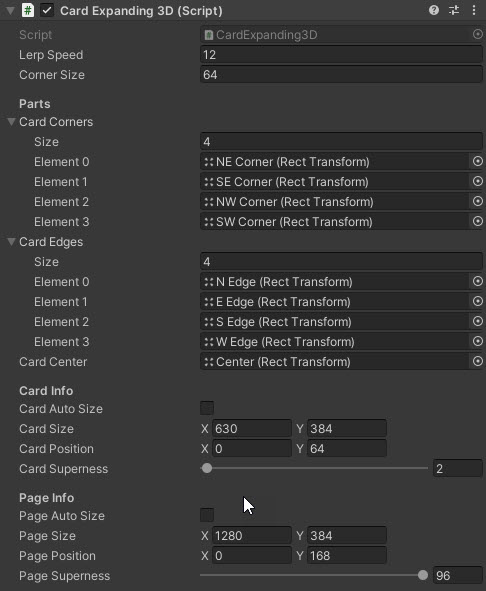

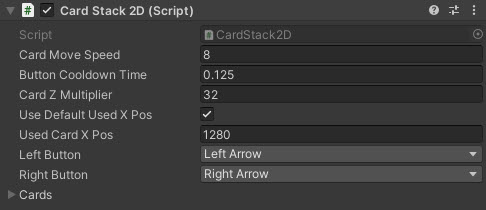

2D Stacked Cards Inspector 3D Expanding Cards Inspector

Properties

The Card UI suite includes several prefabs and behaviours. Key shared inspector settings include:

Property Description
Card Prefab(s) Prefabs for the chosen card style (2D popup, 2D stacked, 3D superellipse, etc.).
Animation Duration Time (seconds) for expand/collapse or popup animations.
Spacing / Stack Offset Gap or depth offset between cards in a stack.
Max Visible / Pool Size How many cards are kept active/pooled for performance.
Use Physics Toggles physics-based motion for popup/falling cards.
Corner / Roundness Rounding amount for 3D/superellipse card corners.
On Card Selected (event) Invoked when a card is selected/expanded (per prefab where exposed).
On Card Closed (event) Invoked when a card collapses or returns to stack (per prefab where exposed).

Methods

This component does not expose public methods beyond inherited behaviour.

Usage

For fuller demonstration of the setup of the Card UI controls, checkout the CardUI scenes in the Unity UI Extensions Examples,

Video Demo

See also

N/A

Credits and Donation

Credit ryanslikesocool

Sourced from - https://github.com/ryanslikesocool/Unity-Card-UI
